Kane Flue Gas Analyser

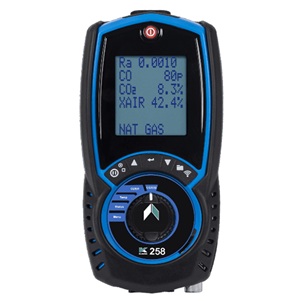

Kane 258
Flue Gas Analyser with Direct CO, O2 & CO Sensor Protection
- Entry level FGA for domestic gas applications
- Easy to use rotary dial
- Purge pump protection prevents accidental damage to CO sensor
- Hydrogen (H2 ) ready – up to 20% blend
Measures : CO 0-2,000ppm, O2 0-21% & Differential temperature
Calculates: CO2 0-20%, CO/CO2 Ratio, Excess Air & Combustion Efficiency
Flue Gas Analyser with Directly measuring CO & CO2
- Tests domestic gas, oil, biomass & some commercial appliances
- Easy to use rotary dial
- Purge pump protection prevents accidental damage to CO sensor
- Optional O2 , NO, NOx & High Range CO
Measures : CO2 direct with an Infra-Red sensor 0-20% & CO 0-2,000ppm
Calculates: O2, CO/CO2 ratio, Excess air, Combustion efficiency & NOx

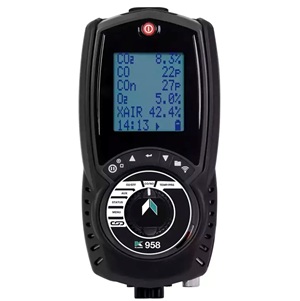

Kane 958
Flue Gas Analyser with Direct O2 & CO Sensor Protection
- Tests domestic gas, oil, biomass & some commercial appliances
- Easy to use rotary dial
- Purge pump protection prevents accidental damage to CO sensor
- Optional NO, NO2, High Range CO & SO2
Measures : O2 0-21% ppm, CO 0-10,000ppm , H2 Compensated, Differential temperature & High accuracy differential pressure meter
Calculates: CO2, Excess air, NOx, CO/CO2 ratio & Combustion efficiency

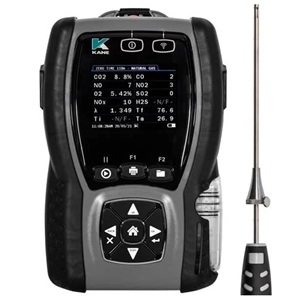

Kane 988
Flue Gas Analyser with Direct O2, CO2, CO & HC with CO Sensor Protection
- Tests domestic gas, oil, biomass & some commercial appliances
- Easy to use rotary dial
- Purge pump protection prevents accidental damage to CO sensor
- Optional H2S, NO, NO2, SO2, Differential temperature & Differential pressure
Measures : O2 0-21%, CO2 0-20%, CO 0-10,000ppm H2 compensated & 100,000ppm, HC 0-5000ppm, Differential temperature & Differential pressure
Calculates: Excess air, NOx, CO/CO2 ratio, Combustion efficiency, Poison Index (Pi) & Airflow Pitot tube
