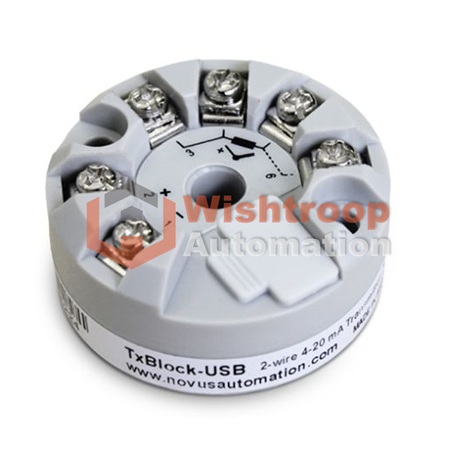

Novus TxBlock-USB Head Mounted Temperature Transmitter
Novus TxBlock-USB Head Mounted Temperature Transmitter (8806000410) is loop-powered head mounted temperature transmitter.
It accepts several types of sensors – thermocouples, Pt100, Pt1000, NTC and 0-50 mV signal – all-in-one model, with linearized 4-20 mA output and configurable measurement range.
It allows 2 points calibration for field tuning and can be supplied also with accredited calibration certificate according to ILAC recognition, and additionally can be supplied already preconfigured with customer parameters. TxBlock-USB is compliant with the leading standards of electromagnetic compatibility.
The built-in USB port allows configuration, easy commissioning and fine tuning on periodic calibration reviews.
Software : For Configuration TxConfig II or SigNow.
Warranty : 3 years Supply Warranty from Billing Date
Shipping: Pan India shipping via courier facility
PRODUCT DESCRITION OF NOVUS TxBlock-USB: Head Mounted Temperature Transmitter:
• Power Supply: 10 to 35 Vdc, ensuring flexibility for different industrial systems.
• Universal Inputs: Compatible with thermocouples (J, K, T, E, N, R, S, B), Pt100, Pt1000, NTC, and voltage signals (0-50 mV), allowing broad application in various sectors.
• Linearized Output: Reliable transmission of 4-20 mA signals with zero offset adjustment via configuration software.
• Electromagnetic Immunity: Designed to meet global standards, ensuring stability even in harsh industrial environments.
• Resolution: 2 µA, ensuring high measurement precision.
• Compact Dimensions: Only 43.5 mm in diameter and 20.5 mm in height, ideal for head mounting.
• Versatile Configuration: Quick adjustments via an integrated USB port with compatibility for Windows® systems.
• Dimensions: 43.5 mm x 20.5 mm (1.71 in x 0.80 in) D x H
• Working temperature: -40 to +85 °C (-40 to 185 °F)
• Cold junction compensation for thermocouples
• Free Windows configuration software: TxConfig II or SigNow.
• USB micro-B port: allows direct PC or smartphone connection for configuration
Applications of the TxBlock-USB:
The TxBlock-USB is the ideal choice for applications requiring reliability and versatility:
• Industrial Automation: Integration with control systems for continuous monitoring.
• Critical Processes: Chemical, pharmaceutical, and food industries that require high-precision measurements.
• Harsh Environments: Operating temperature range of -40 to 85 °C, resistance to electromagnetic interference, and proven robustness.
