Masibus Signal Isolator
9000U+

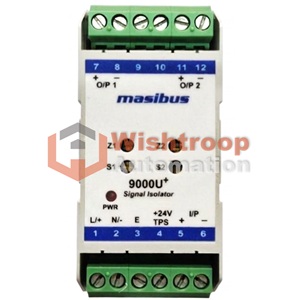

Masibus Signal Isolator 9000U+
- Compact DIN Rail mount design of 35mm for single and dual output models
- Rugged & accurate 4 wire isolator
- Built-in transmitter power supply (TPS) to drive field transmitters
- Signal option for 0/4-20mA, 0/1-5V and 0-10V I/O selection
- Extended universal power supply range: 20V to 265VDC or VAC
- Front calibration facility via multiturn trimpot
‘S’ Version: 4-20mA (standard Single or DUAL output )
‘M’ Version: 0/4 to 20mA, 0/1 to 5V, 0 to 10VDC (DIP Switch Selection Single or DUAL output )
9000L

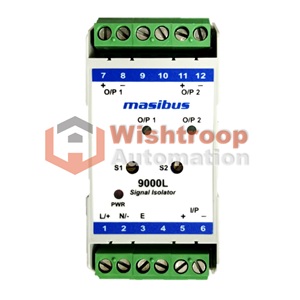

Masibus Signal Isolator 9000L
- Compact DIN Rail mount design of 35mm for single and dual output models
- Rugged & accurate 4 wire isolator
- Signal option for 4-20mA and 0-10V I/O selection
- Extended universal power supply range: 20V to 265VDC or VAC
- Front calibration facility via multiturn trimpot
‘S’ Version: 4-20mA (standard Single or DUAL output )
‘M’ Version: 4 to 20mA, 0 to 10VDC (Single or DUAL output)
9000C

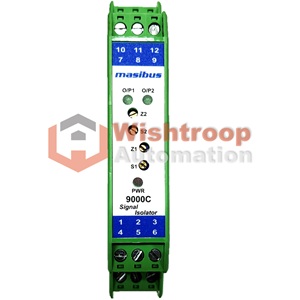

Masibus Signal Isolator 9000C
- Slim DIN rail mount design of 12.5mm for single output and 17.5mm for dual output
- Rugged & accurate 4 wire and 2 wire Isolator
- Built-in transmitter power supply (TPS) to drive field transmitters
- Signal option for 0/4-20mA, 0/1-5V and 0-10V I/O selection
- Extended universal power supply range: 20V to 265VDC or VAC
- Front calibration facility via multiturn trimpot
‘L’ Version: 4-20mA (Loop Powered)
‘S’ Version: 4-20mA (standard Single or DUAL output )
‘M’ Version: 0/4 to 20mA, 0/1 to 5V, 0 to 10VDC (DIP Switch Selection, Single or DUAL output)
‘H’ Version: 4 to 20mA, HART Pass (Single or DUAL output )
MAS-AI-08-D
Masibus 8 Channel Analog Input Module MAS-AI-08-D
- 8 Channel DC volt/current (Factory set)
- Built-in transmitter power supply (TPS) to drive field transmitters
- Signal option for 0/4-20mA, 0/1-5V and 0-10V I/O selection (Factory set)
- Output option with D-type Male Connector Or Screw terminals
- Power supply range: 24VDC
- Front calibration facility via multiturn trimpot
