Masibus Scanner Data Acquisition

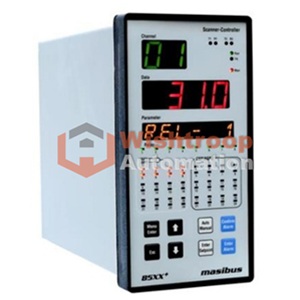

85XX+ Universal Temperature Scanner (8/16/24 Channel)
Masibus 85XX+ Universal Temperature Scanner
85XX+ offers 24 Channel Universal Analog Inputs with additional capabilities of multi-serial ports, Ethernet port, Profibus-DP, USB port, scanning speed and alphanumeric display
- Alpha-Numeric display for programmable tag no / Engg unit
- 24 Channel Universal Analog Inputs & 16 Channel Digital Input Module
- Input Type: Thermocouple (E, J, K, T, B, R, S, N), RTD (Pt-100), Current, Voltage
- 4/ 8 Relay Output Module, 24 Open Collector Output Module & 8 Channel Analog Outputs
- Communication: RS485 Serial port, Ethernet port, USB port & Profibus-DP port
- Power supply: 85-265VAC/ 100-295 V DC OR 18 – 36VDC
- Datalogging option
- 85XX+ is configured using the mSCAN⁺ software

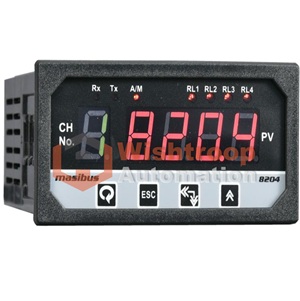

8204 (4 Channel)
Masibus 8204 Scanner
8204 offers 4 Channel Universal Analog Inputs with 4 relays with full mapping and logic flexibility. User has facility to program alarm, trip set-points and logic individually or group wise. Channels can be configured up to 4 groups with one relay per group; 2 groups with 2 relays per group or 1 group with 4 relays per group.
- Alpha-Numeric display for programmable tag no / Engg unit
- 4 Channel Universal Analog Inputs
- Input Type: Thermocouple (E, J, K, T, B, R, S, N), RTD (Pt-100), Current, Voltage
- 4 Relay Output Module
- Retransmission Output: 4-20mA / 0-20mA / 1-5 V / 0-5 V / 0-10 V
- Communication: RS485 Port
- Power supply: 85-265VAC/ 100-295 V DC OR 18 – 36VDC

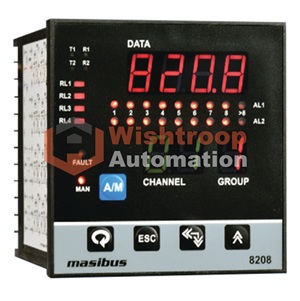

8208 (8 Channel)
Masibus 8208 Scanner
8208 offers 8 Channel Universal Analog Inputs with 4 relays with full mapping and logic flexibility. User has facility to program alarm, trip set-points and logic individually or group wise. Channels can be configured up to 4 groups with one relay per group; 2 groups with 2 relays per group or 1 group with 4 relays per group.
- Alpha-Numeric display for programmable tag no / Engg unit
- 8 Channel Universal Analog Inputs
- Input Type: Thermocouple (E, J, K, T, B, R, S, N), RTD (Pt-100), Current, Voltage
- 4 Relay Output Module
- Retransmission Output: 4-20mA / 0-20mA / 1-5 V / 0-5 V / 0-10 V
- Communication: RS485 Port
- Power supply: 85-265VAC/ 100-295 V DC OR 18 – 36VDC

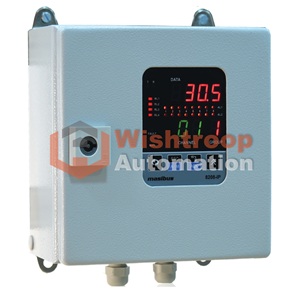

8208-IP Weather Proof Scanner (4/8 Channel)
8208-IP Weather Proof Scanner (4/8 Channel)
8208-IP offers 8 or 4 Channel Universal Analog Inputs with 4 relays with full mapping and logic flexibility. User has facility to program alarm, trip set-points and logic individually or group wise. Channels can be configured up to 4 groups with one relay per group; 2 groups with 2 relays per group or 1 group with 4 relays per group.
- Alpha-Numeric display for programmable tag no / Engg unit
- IP65 weather proof protection
- 8 or 4 Channel Universal Analog Inputs
- Input Type: Thermocouple (E, J, K, T, B, R, S, N), RTD (Pt-100), Current, Voltage
- 4 Relay Output Module
- Retransmission Output: 4-20mA / 0-20mA / 1-5 V / 0-5 V / 0-10 V
- Communication: RS485 Port
- Power supply: 85-265VAC/ 100-295 V DC OR 18 – 36VDC

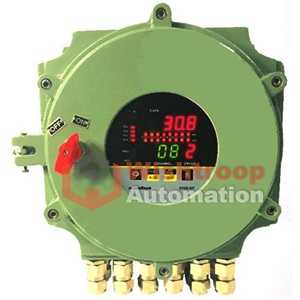

8208-XP Flame Proof Scanner (8 Channel)
8208-XP Flame Proof Scanner (8 Channel)
8208-XP offers 4 or 8 Universal Analog Inputs with 4 relays with full mapping and logic flexibility. User has facility to program alarm, trip set-points and logic individually or group wise. Channels can be configured up to 4 groups with one relay per group; 2 groups with 2 relays per group or 1 group with 4 relays per group.
- Alpha-Numeric display for programmable tag no / Engg unit
- Type of Protection: Gas Groups IIA & lIB, IP65, Zone: 1, 2 / Optional: Group IIC
- 4 or 8 Channel Universal Analog Inputs
- Input Type: Thermocouple (E, J, K, T, B, R, S, N), RTD (Pt-100), Current, Voltage
- 4 Relay Output Module
- Retransmission Output: 4-20mA / 0-20mA / 1-5 V / 0-5 V / 0-10 V
- Communication: RS485 Port
- Power supply: 85-265VAC/ 100-295 V DC OR 18 – 36VDC
